SPECIFICATIONS
Brand Name: Yeego
Capacity: 145L
Certification: ETL
High-concerned chemical: none
Installation: Built-In
Origin: Mainland China
Refrigeration Type: Air Cooling
Shelf Quantity: 5-7 Layers
Temperature Control: Electronic Temperature
Temperature Zone: Single-Zone
Product Overview

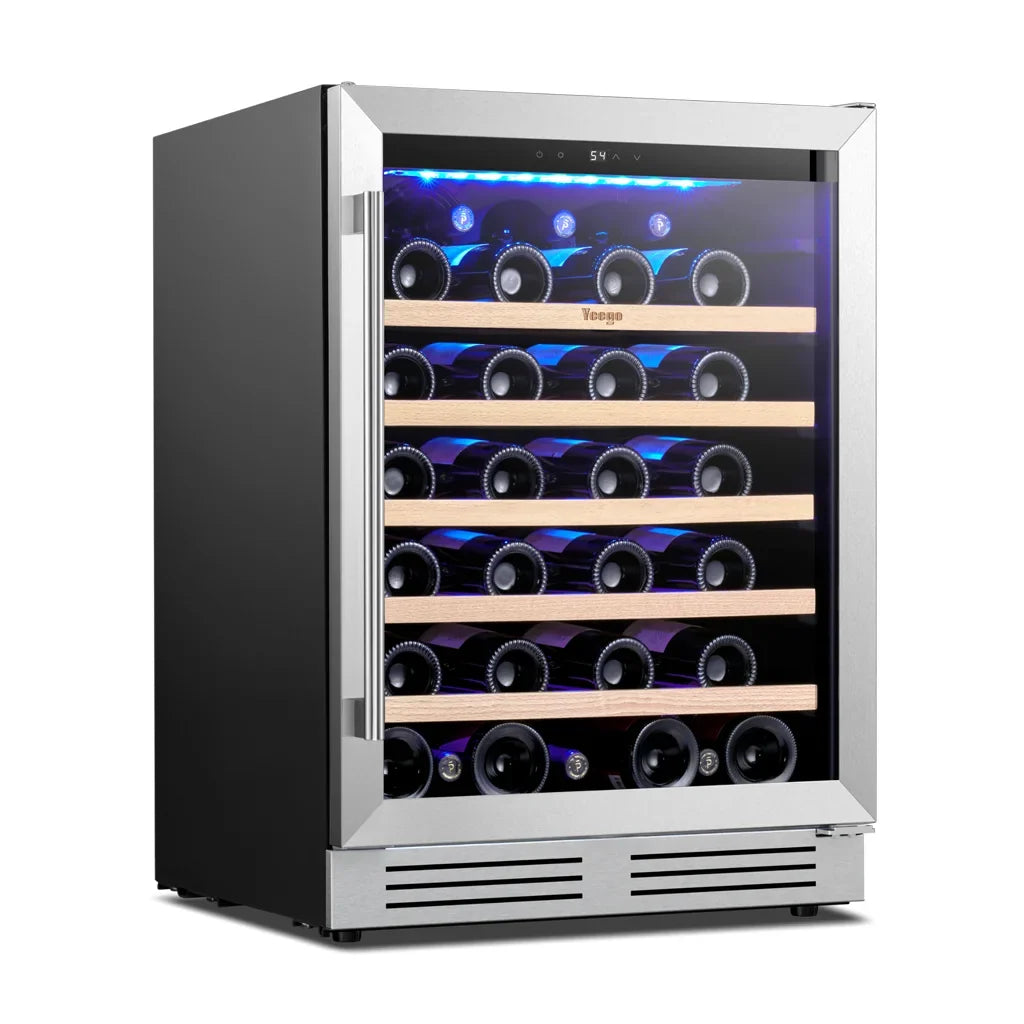

This single-zone wine cooler is customized exclusively for the North American market, compatible with 115V/60Hz US standard power supply. The 145L capacity holds up to 52 wine bottles (45 standard bottles + 7 non-standard bottom bottles). Equipped with Wanbao compressor cooling system and forced air circulation, it operates quietly at 42dB. Fully certified by CETL safety standard and DOE energy efficiency standard, it features a right-angle spliced stainless steel door and 5 layers of solid beech wood shelves. It can be freestanding or built into sideboards, meeting professional constant-temperature wine storage demands for North American families, small western restaurants and boutique homestays.
Core Specifications
Model No.: JC-145A1EQ;
Zones: Single independent temperature zone
Bottle Capacity: 52 bottles (45 standard + 7 non-standard bottom bottles)
Effective Capacity: 145L (5.12 Cu.ft)
Climate Type: N, SN
Max Operating Noise: ≤42dB
Annual Power Consumption: 194 kWh/year
Voltage & Frequency: 115V 60Hz (North American Standard)
Certifications: CETL Safety Certification, DOE Energy Efficiency Certification
Temperature Range: 5-18℃ (40-65℉), factory default Fahrenheit display
Unit Dimensions (W×D×H): 595(Front)×570×820mm
Net Weight: 44kg; Gross Weight: 53kg
Packing Dimensions (W×D×H): 700(Front)×663×910mm
Loading Quantity (40HQ without pallet): 145 units
Cooling & Electronic Temperature Control System
(1) Stable Compressor Air Cooling with Even Temperature Distribution
Adopts Wanbao EYK40U6 compressor with eco-friendly R600a refrigerant, matched with single finned evaporator and wire-on-tube condenser. Dual internal & external fans (Outer: KD1225LB / Inner: KD1225LS) deliver full forced air circulation without temperature dead zones inside the cabinet. Dual NTC temperature sensors (1 inside cabinet + 1 on evaporator) monitor real-time temperature for precise stable control.
Equipped with 2 defrost heating tubes, cooperating with periodic auto defrost function to prevent fogging on glass door, no manual frost cleaning required for long-term use.
(2) Top Mounted LED Electronic Control for North American Users
Blue LED digital display is installed on the top thermostat box with clear readings, supporting one-touch °F/°C conversion and factory default Fahrenheit display. Power board model JP-A04-12V10 ensures stable operation.
Single blue interior ambient light is controlled by independent touch button, creating premium atmosphere for wine access and display at night.
Built-in power-off memory function automatically restores original temperature settings after power outage without repeated adjustment.
(3) Standard Practical Functions
✅ Auto Defrost: Periodic full automatic defrost with dual defrost heating tubes, no manual frost cleaning required for long-term 24/7 maintenance-free operation.
✅ Activated Carbon Deodorizer: Built-in filter absorbs peculiar odors to prevent wine flavor cross-contamination and retain original wine aroma completely.
✅ Mechanical Lock: Equipped with lock to secure valuable wine bottles and avoid accidental opening by children or irrelevant personnel.
❌ No Sabbath mode, over-temperature alarm, door ajar alarm, WIFI control, solenoid valve or temperature lock function. Simplified circuit design reduces overall failure rate.
Cabinet, Liner & Thick Insulation Structure
Cabinet Material: 0.4mm A3 pre-coated steel plate with black sand grain finish, integrated box structure, rust-proof, wear-resistant and anti-deformation against impact.
Layered Insulation Foam: Eco-friendly cyclopentane foam with layered thickness (Top:33mm / Bottom:37mm / Left:37mm / Right:37mm). High density insulation locks cold air effectively to cut energy consumption and meet DOE energy saving standard.
Liner: Integrated black HIPS liner, corrosion-resistant against wine spills, easy to wipe clean and anti-mold.
Back Panel: Galvanized embossed plate fully wraps compressor compartment, dust-proof and moisture-proof to extend service life of internal cooling components.

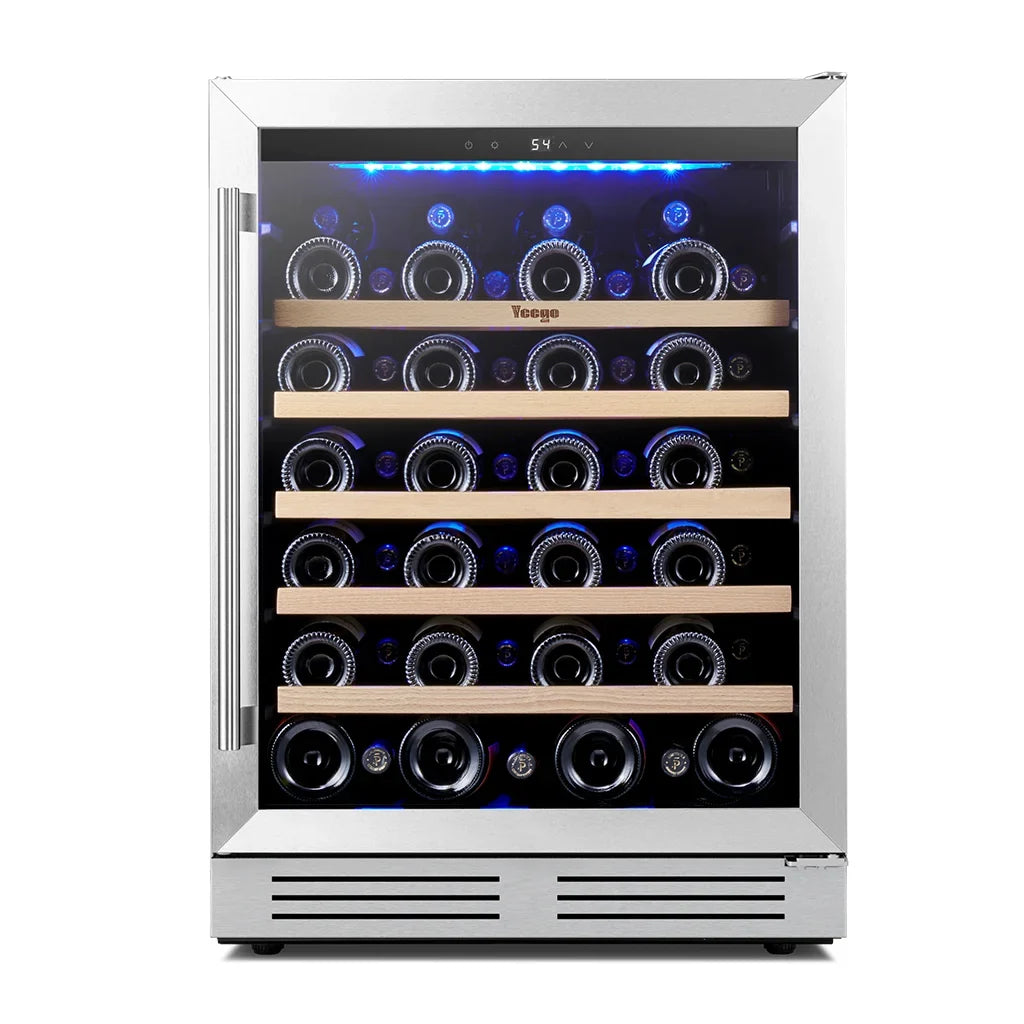

Premium Right-Angle Stainless Steel Door Design
Door Style: Right-angle spliced stainless steel door, reversible left/right swing to fit different home & store layouts.
Door Size: 588×715mm
Hollow Double Glass: Outer tempered white glass + inner plain glass, insulated anti-condensation layer blocks UV rays to avoid wine oxidation from light exposure.
Seal: High-elastic black rubber door seal tightly fits frame to lock cold air efficiently.
Hardware: Stainless steel hinges for smooth long-term opening; L-shaped round stainless steel handle, fingerprint-resistant; built-in mechanical lock for secure wine storage.

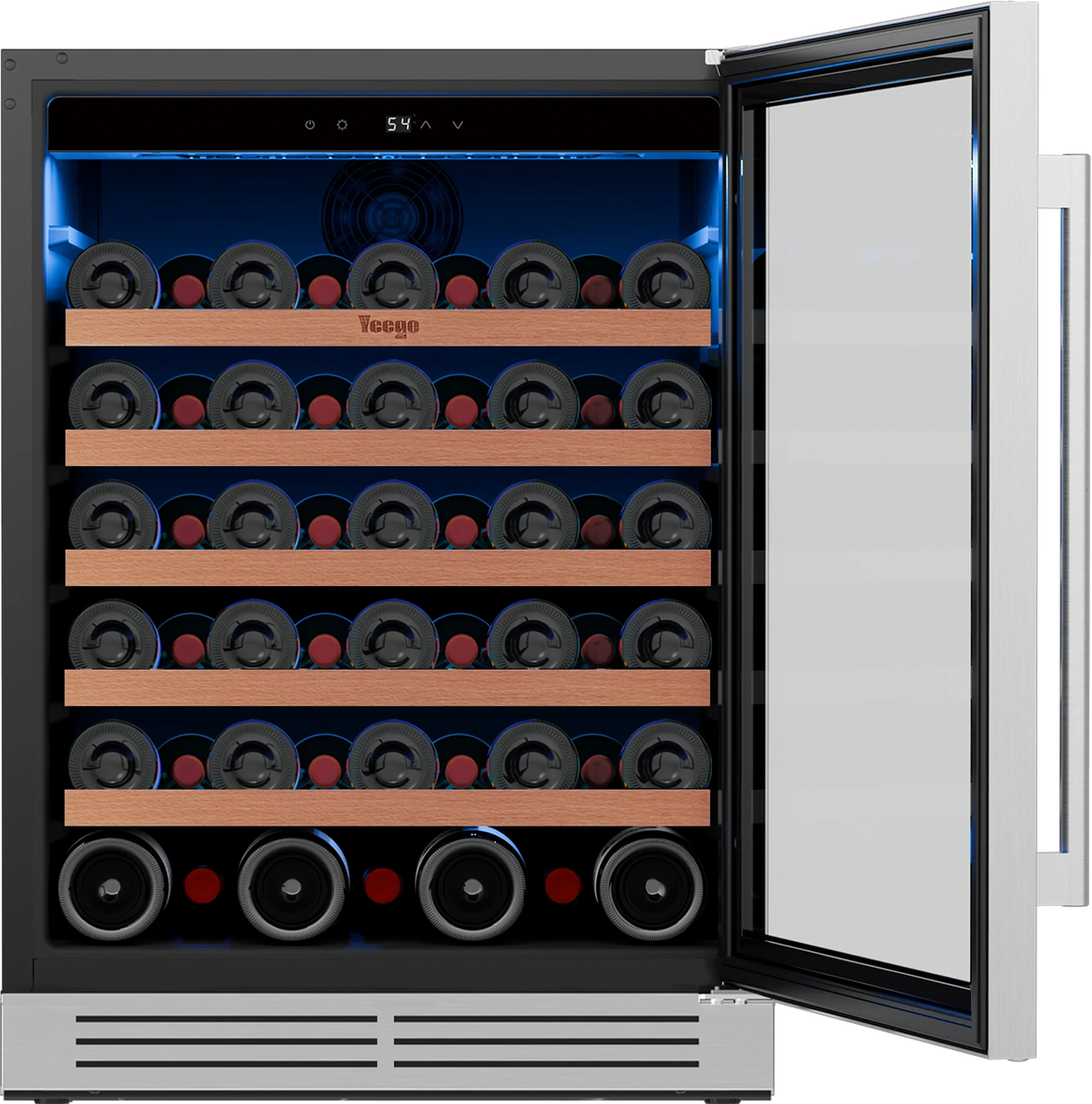

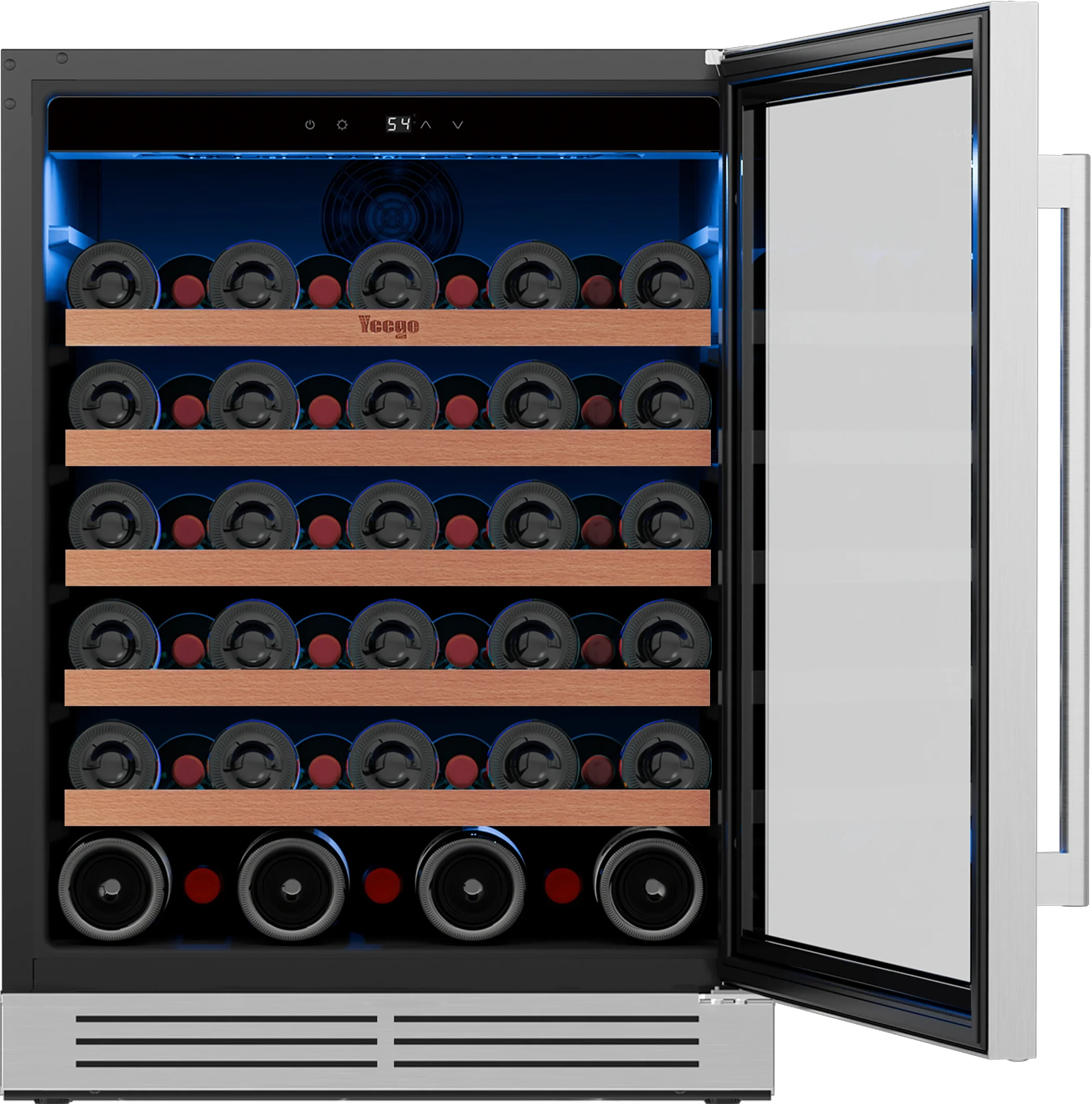

Default Swing: Right-hand opening, reversible to left-hand.
Interior Storage & Body Details
Shelves: 5 layers of unglazed solid beech wood shelves with natural mild texture, freely adjustable height to fit various wine bottle sizes.
Fan Grilles: 2 black electrophoretic iron mesh grilles, dust-proof and anti-touch for easy daily cleaning.
Air Outlet: Hidden 304 stainless steel louver air outlet for uniform air circulation with minimalist clean appearance.
Adjustable Feet: Four adjustable feet to level the unit on uneven floors and reduce vibration noise.
No bottom display rack or pull-out baskets for full open interior space and higher space utilization.
Application Scenarios

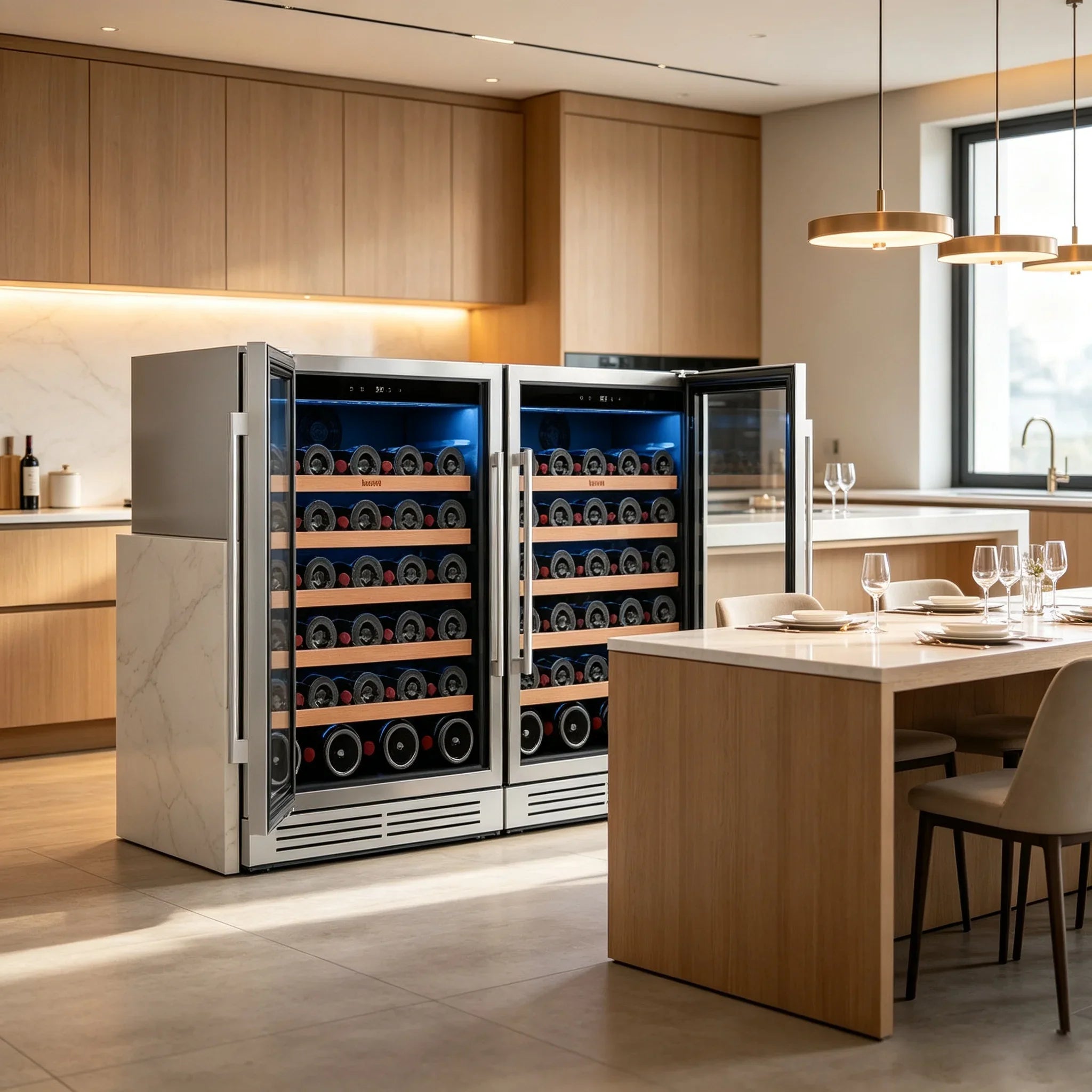

🏠 Home Use: North American apartments, single-family home sideboards & wine zones for storage of red, white and sparkling wines.
🍷 Small Commercial: Boutique western restaurants, wine shops and bars for constant-temperature wine display & storage.
🏨 Hospitality Use: Boutique homestays and resort hotel guest rooms as premium in-room wine storage equipment.
